Preface

This user manual contains the introduction, use and maintenance of TF-UW500 LiDAR. Please read this manual carefully before formal use, and strictly follow the steps described in the manual during use to avoid product damage, property loss, personal injury or/and violation of product warranty terms. If you encounter problems that cannot be solved during use, please contact Benewake staff for assistance. Contact Details Official website: https://ai.benewake.com/en/products/tf-uw500/ Contact number: 400-880-9610 For technical questions, please contact: support@benewake.com For sales inquiries or to request brochure, please contact: bw@benewake.com Headquarter Address Benewake (Beijing) Co., Ltd. 3rd Floor, Haiguo Jiaye Sci-Tech Park, Haidian District, Beijing, China Copyright Notice This User Manual is copyright © of Benewake. Please do not modify, delete or translate the description of this manual contents without the official written permission from Benewake. Disclaimer The TF-UW500 product is constantly being improved, and its specifications and parameters will undergo iterative changes. Please refer to the official website for latest version.

Contents

1 Laser Safety Information.............................................................................................................. 4 2 Installation and Maintenance....................................................................................................4 3 Product Overview............................................................................................................................ 1

3.4 FoV................................................................................................................................................4 4 Device Installation..........................................................................................................................5 4.1 Mechanical installation......................................................................................................... 5 4.2 Connector..................................................................................................................................6

1 Laser Safety Information

This LiDAR uses visible red laser spots. Class 1 according to IEC 60825-1:2014, EN 60825-1:2014+A11:2021.

CAUTION! Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

2 Installation and Maintenance

CAUTION! This laser product is classified as Class 1 during operational procedures. When the ranging feature is activated, the laser emitter of the LiDAR module may emit laser radiation, therefore, the LiDAR should NOT be aimed at humans and animals to ensure safety. This product is designed and calibrated for installation with exposed lenses. If a protective window needs to be added in front of the lens, it is necessary to ensure the use of materials with high transmission and anti-reflective coating. Avoid the presence of smoke and fog in the detection field. Avoid condensation. Avoid direct exposure to moisture and water. Do not use rough fabric or dirty towels or aggressive products to clean the laser lenses. Do not use a supply voltage higher than the maximum required in the specifications to power the product. Clean the laser lenses with compressed air. When needed, wipe the laser lenses only with a soft, clean microfiber cloth. Make sure the sensor is securely mounted to prevent false readings or damage. Only trained and qualified personnel may install, setup and repair the LiDAR.

3 Product Overview

This chapter mainly introduces the measuring principle, technical specifications, structural description, equipment coordinates and field of view distribution of the TF-UW500 LiDAR. 3.1 Measuring principle TF-UW500 is a typical Pulse Time of Flight (PToF) sensor. TF-UW500 emits a narrow pulse laser, which is collimated by the transmitting lens, which enters the receiving system after being reflected by the measured target and is focused on the detector by the receiving lens. The time between the transmitted signal and the received signal is calculated through the circuit amplification and filtering, and the distance between TF-UW500 and the measured target can be calculated through the speed of light.

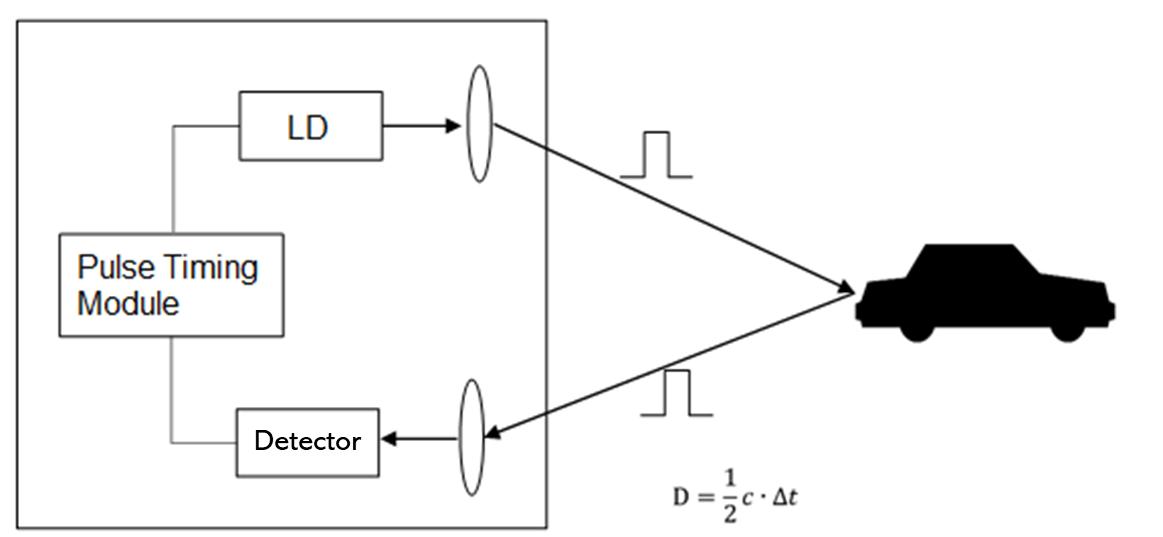

Figure. 1: Pulsed time of flight

3.2 Technical Specifications

Performance Parameters

Optical Parameters

Mechanical and Electrical Parameters

Communication Protocol

Parity None

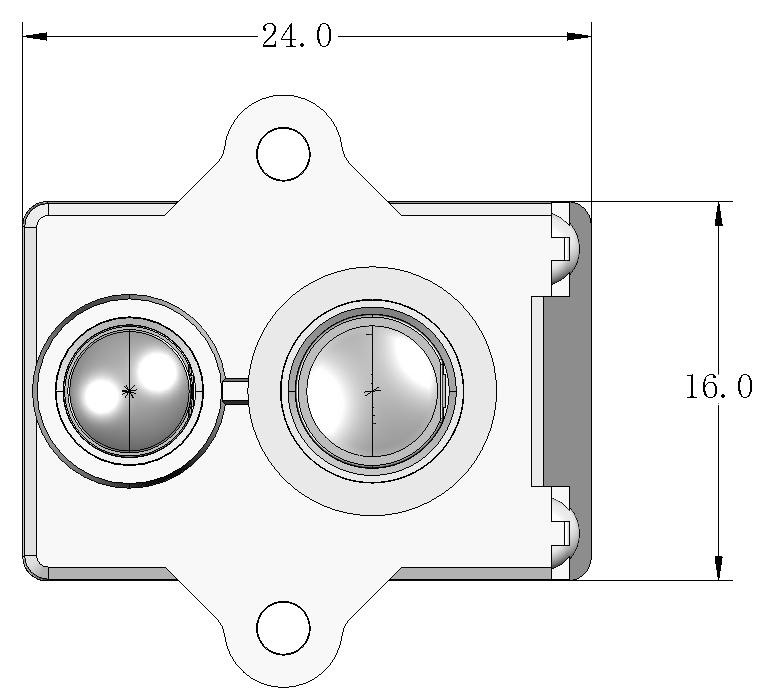

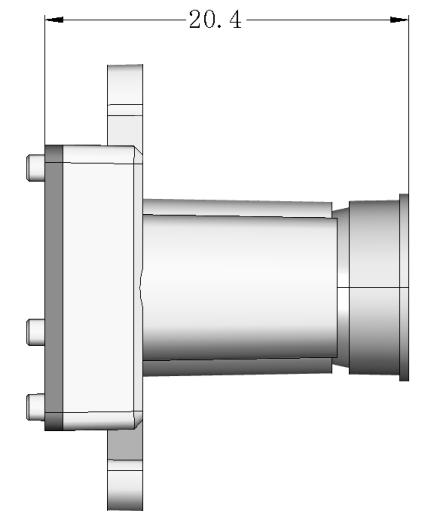

Dimensions (Unit: mm)

Notes:

1. 100 KLux ， NTU ＜ 0.5 ， 30% reflectivity (Common materials such as white tiles, blue and white tiles, marble, cement, etc), vertical incidence, water depth greater than 1m;

2. Measured indoors at 0 Klux, 25 ℃, for reference only, parameters may change due to environmental changes;

3. The weight and size are typical values for reference only. For detailed tolerance parameters, please consult the technical personnel of Benewake.

3.3 Structural Appearance The overall appearance of the LiDAR is as shown in the figure below:

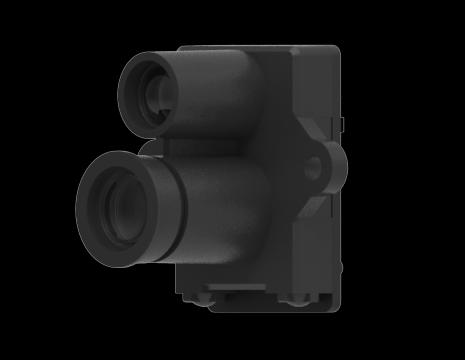

Figure. 2: TF-UW500 Appearance

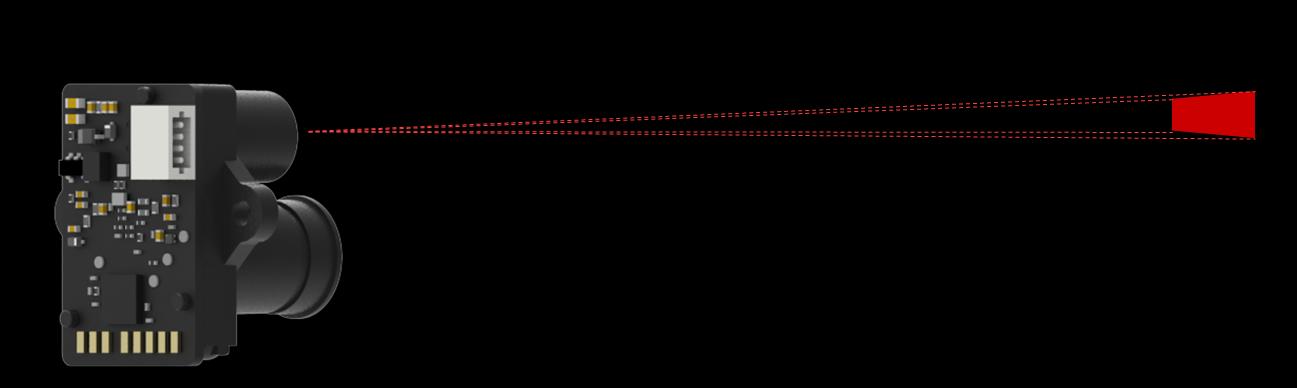

3.4 FoV The field of view of TF-UW500 is shown in the following figure, with a rectangular spot shape and a divergence angle of less than 0.5 ° in any direction.

Figure. 3: FoV of TF-UW500

NOTICE 0.5° is theoretic values. Because the manufacturing error and the installing error exist, there is divergence between actual and theoretic values.

4 Device Installation

This section introduces the mechanical installation and connection information of TF-UW500 LiDAR. 4.1 Mechanical installation As shown in the following figure. TF-UW500 has 2 installation positioning holes available for use.

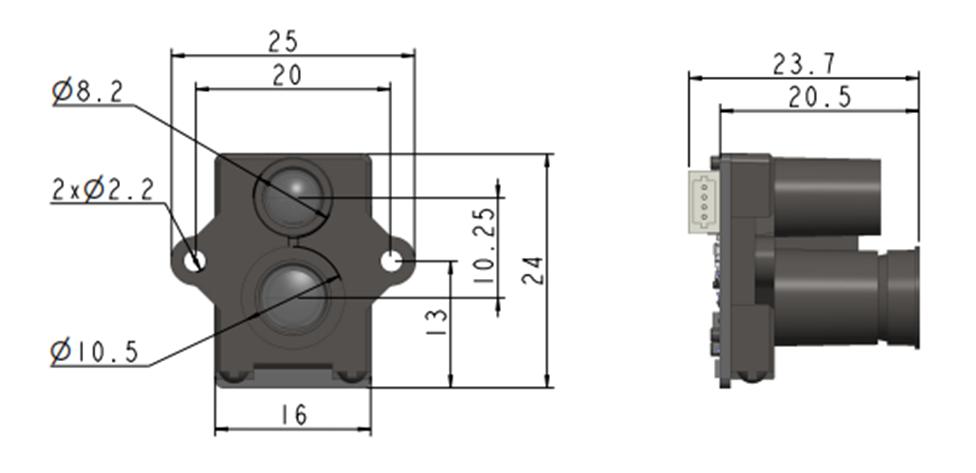

Figure. 4: Diagram of TF-UW500 installation hole

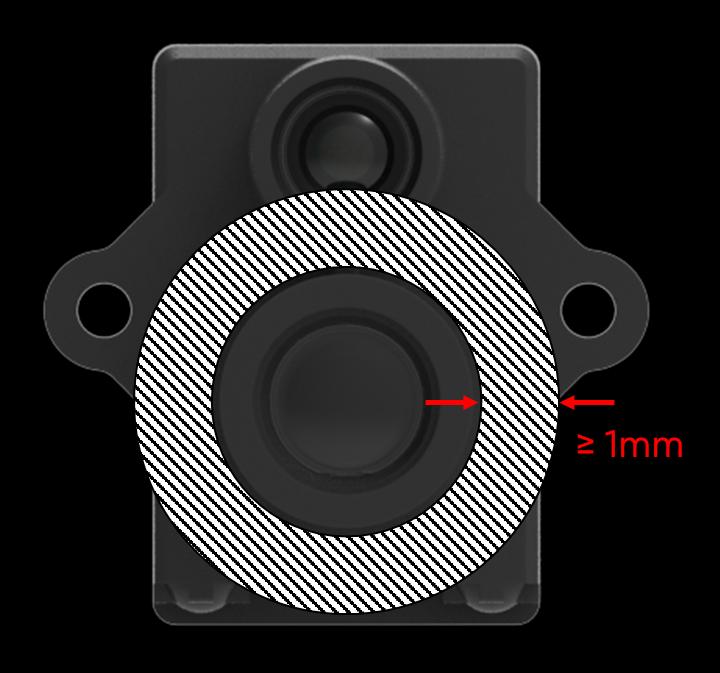

Due to optical assembly tolerances, please leave at least 1mm of additional space in all directions around the circular barrel.

4.2 Connector The connector is 1.0mm-4P, model is HC-1.0-4PWT, appearance and definition are shown as below:

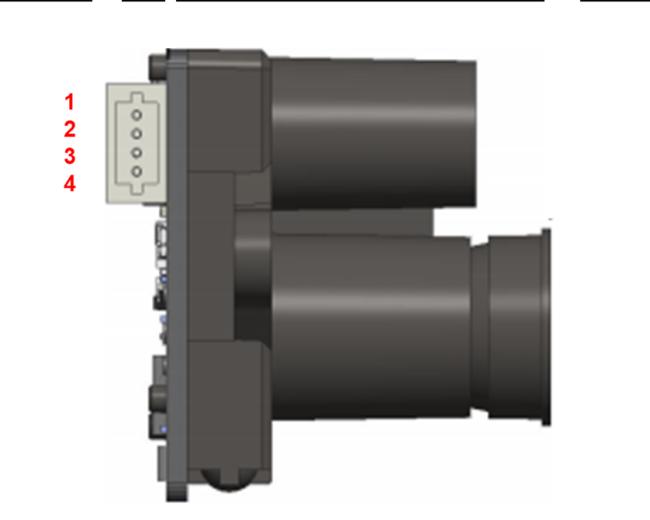

Figure. 5: LiDAR connector appearance

Table. 2: Interface connector pin definitions

5 Communication Protocol and data format

5.1 Serial Communication To connect two devices for TTL communication, the TXD of the transmitter should be connected to the RXD of the receiver, and the TXD of the receiver should be connected to the RXD of the transmitter. The LiDAR does not include a power switch. When power is supplied to the LiDAR, data will begin to be automatically transmitted.

Table. 3: Characteristics of UART Interface

NOTE Baud rate can be set to 9600, 14400, 19200, 38400, 56000, 57600, 115200, 128000, 230400, 256000, 460800, 500000, 512000, 600000, 750000, and 921600. If other value were set, TF-UW500 will set it to 115200.

Serial port output format: 9-byte/cm (Default) Byte 0 1 2 3 4 5 6 7 8 Description 0x59 0x59 Dist_L Dist_H Peak_L Peak_H Temp Confidence Check_sum

Dist: Output underwater distance measurement value, multiplied by a coefficient of 1.33 in air, can be configured to output in millimeters or centimeters as needed, mm is default. Peak: Signal strength. In general, data quality is good when Peak ≥ 200; When 100<Peak<200, the data repeatability accuracy begins to decrease; Poor repeatability and accuracy when 30 ≤ Peak ≤ 100; When Peak<30, the signal strength is too low for process, LiDAR output 65535. Temp: Chip Temperature ℃ Confidence: Confidence level

5.2 I ² C Communication TF-UW500 supports up to 400kps clock speed as slave machine and its default address is 0x10. For more information about I ² C register table refer to Appendix I ² C register table. Note: In this document, the address of I ² C slave device is a 7-bit value with value range [0x08, 0x77] ([08, 119] in decimal). For the first byte after I ² C releases a start signal, the 7-bit address should be shifted leftward for one bit (i.e. multiplied with 2), and then filled with the read-write sign on the lowest bit. For TF-UW500 , the default address of slave device is 0x10, the address for write operations is 0x20, and the address for read operations is 0x21.

Write register timing: Start Slave Addr W Ack Register Addr Ack Data1 Ack … DataN Ack Stop Read register timing: Start Slave Addr W Ack Register Addr Ack Stop

Start Slave Addr R Ack Data1 Ack … DataN Nack Stop

Note that in the read register sequence, the host can directly generate the second Start signal without generating the first Stop signal. The last Nack can also be an Ack signal. After a write operation on the I ² C register, it takes TF-UW500 some time to process. If users need to read the value from the register for validation purposes, we recommend waiting for 100ms after the write operation, prior to the next read operation.

5.3 Serial communication commands Some parameters in TF-UW500 can be customized by customers, such as data frame format, frame rate, etc., which can be changed by sending specific instructions. After successful configuration, all parameters will be saved in Flash and do not need to be reconfigured when powered on again. When configuring parameters, please follow specific formats and rules to avoid sending commends not introduced below.

Opt: Non 1 read/ 1. Write in

Byte N-1 Check sum The lower 8 bytes of the sum from Head to Payload

5.3.1 Version information ID_GET_VERSION=0x01 Downward: Byte 0 1 2 Len-1 Description Head(0x5A) Len ID Check_sum Upward: Byte 0 1 2 3-5 Len-1 Description Head(0x5A) Len ID Version Check_sum Version: For instance, if the third, fourth, and fifth bytes are 112, 50, 9, then the version is 9.50.112. Sample: Command [5A 04 01 5F]

5.3.2 System software restore ID_SOFT_RESET=0x02 Downward: Byte 0 1 2 Len-1 Description Head(0x5A) Len ID Check_sum Upward: Byte 0 1 2 3 Len-1

Description Head(0x5A) Len ID Status Check_sum Status: 0: success, otherwise: fail Note: Any change without “save current setting” instruction will not be saved and will restore to original setting. Sample: Command [5A 04 02 60]

5.3.3 Output frequency ID_SAMPLE_FREQ=0x03 Downward:

Freq: The actual operating frequency achieved by the LiDAR. Upward: Byte 0 1 2 3~4 Len-1 Description Head(0x5A) Len ID FPS Check_sum Freq: The actual operating frequency achieved by the LiDAR. Sample: 20Hz [5A 06 03 14 00 77]

5.3.4 Output format setting ID_OUTPUT_FORMAT=0x05 Downward:

Format: 0x01: 9byte cm, 0x06: 9byte mm Upward: Byte 0 1 2 3 Len-1 Description Head(0x5A) Len ID Format Check_sum Format: current output format setting Sample: 9byte mm [5A 05 05 06 6A]

5.3.5 Baud rate setting ID_BAUD_RATE=0x06 Downward:

Baudrate: current baud rate. Note: Configurable baud rate range [9600, 921600], effective after saving. Upward:

9600 [5A 08 06 80 25 00 00 0D] 19200 [5A 08 06 00 4B 00 00 B3] 38400 [5A 08 06 00 96 00 00 FE] 57600 [5A 08 06 00 E1 00 00 49] 115200 [5A 08 06 00 C2 01 00 2B] 230400 [5A 08 06 00 84 03 00 EF] 460800 [5A 08 06 00 08 07 00 77] 921600 [5A 08 06 00 10 0E 00 86]

5.3.6 Enable/disable output ID_OUTPUT_EN=0x07 Downward:

Enable: 0: disable, 1: enable Upward: Byte 0 1 2 3 Len-1 Description Head(0x5A) Len ID Enable Check_sum Sample: Enable output [5A 05 07 01 67] Disable output [5A 05 07 00 66]

5.3.7 Enable/disable checksum comparison ID_FRAME_CHECKSUM_EN=0x08 Downward:

Enable: 0: disable, 1: enable Note: Even if the Downward data checksum comparison is disabled, the valid checksum is still included in the upward data frame. Upward: Byte 0 1 2 3 Len-1 Description Head(0x5A) Len ID Enable Check_sum Sample: Enable checksum comparison [5A 05 08 01 68] Disable checksum comparison [5A 05 08 00 67]

5.3.8 Communication interface settings ID_IF_PROTOCOL=0x0A Downward:

Opt: !1: read, 1: write If_protocol: !1: UART, 1: I ² C Upward:

Set to I ² C [5A 06 0A 01 01 6C] Note: Effective after saving

5.3.9 I ² C slave machine address configuration ID_I ² C_SLAVE_ADDR=0x0B Downward: Byte 0 1 2 3 4 Len-1

Description Head(0x5A) Len ID Opt I ² C_slave_addr Check_sum Default 0x10 Opt: !1: read, 1: write I ² C_slave_addr: range[0x08, 0x77] ； Upward:

Set to 0x20 [5A 05 0B 01 20 8B] 5.3.10 Restore default setting ID_RESTORE_DEFAULT=0x10 Downward: Byte 0 1 2 Len-1 Description Head(0x5A) Len ID Check_sum Upward: Byte 0 1 2 3 Len-1 Description Head(0x5A) Len ID Status Check_sum Status: 0: success, Non 0: fail Sample: Command [5A 04 10 6E]

5.3.11 Save current setting ID_SAVE_SETTINGS=0x11 Downward: Byte 0 1 2 Len-1 Description Head(0x5A) Len ID Check_sum Upward: Byte 0 1 2 3 Len-1 Description Head(0x5A) Len ID Status Check_sum Status: 0: success, Non 0: fail Sample: Command [5A 04 11 6F]

5.3.12 Distance limit setting range ID_DIST_RANGE=0x3A Downward:

Opt: !1: read, 1: write Min_dist: minimum distance output in mm Max_dist: maximum distance output in mm Upward: Byte 0 1 2 3 4-5 6-7 Len-1 Description Head(0x5A) Len ID Status Dist_min Dist_max Check_sum Status: 0: success, Non 0: fail Sample: Output limit when out of range with the minimum set to be 200mm and the maximum set to be 5000mm [5A 09 3A 01 C8 00 88 13 01]

CAUTION Do not send the command that is not in the list above.

Appendix I ² C REGISTER TABLE

Save and restart to take effect
