Horn-X2 Pro Datasheet

Horn-X2 Pro Series Datasheet

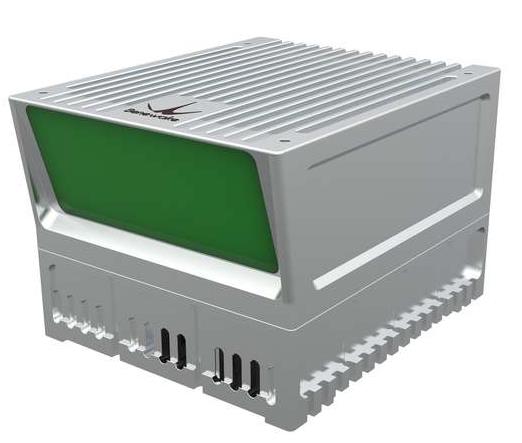

Benewake Horn-X2 Pro is a 3D LiDAR which combines high-performance, high safety and high reliability. This LiDAR can be applied in a variety of mass transportation application scenarios, such as Cooperative Vehicle Infrastructure System (CVIS), Intelligent airport, Intelligent railway, Intelligent shipping, and so on. Horn-X2 Pro generates a high-density point cloud of up to 600 lines due to the high vertical angle resolution, easily perceiving the surrounding environment. Because of its advanced design, Horn-X2 Pro LiDAR effectively resists strong ambient light interference and works steadily under severe weather conditions. Horn-X2 Pro supports for multiple working modes, and its performance parameters can be tailored in order to satisfy various complex requirements of customers.

PRODUCT PERFORAMNCE

@750K points/s @830K points/s @620K points/s

Range @100Klux ① 2m~200m 2m~250m 2m~300m

@10%Reflectivity @10%Reflectivity @10%Reflectivity

Frame Rate 1-20FPS Return Mode Support Last/Further/Strongest return modes

OPTICAL PERFORMANCE

Laser Safe Class Class 1 Eye safety 【IEC60825-1:2014】 Laser Wavelength 1550nm Beam Divergence 1.1mrad

DATA OUTPUT

Network Interface 1000Base-T Data Protocol UDP Time Synchronization PPS+GPS 、 IEEE1588v2 Working Platforms Windows ， Linux & ROS drives

COMPEHENSIVE PARAMETERS

Power Consumption ≤ 35W Operating Voltage 9-36V

Dimensions 192.6*157*126mm

Weight ≤ 3.8KG Network Connector M12 X-code-8pin male Power Connector M12 A-code-8pin female Operating Temperature -40 ℃ ~85 ℃ Storage Temperature -40 ℃ ~90 ℃ Ingress Protection IP67 Mounting Refer to below exterior dimensions

 This range is measured outdoors under 100Klux or less, and at an ambient temperature of 25 ℃. Changes in conditions may cause variations in the measurement results. The blind area is 2m within ± 25 ° of the horizontal center FoV.  This precision is measured at 10% reflectivity in the range of 2-50m at an ambient temperature of 25 ℃. Changes in conditions may cause variations in the measurement results.  This accuracy is measured at 90% reflectivity in the range of 2-50m at an ambient temperature of 25 ℃. Changes in conditions may cause variations in the measurement results.

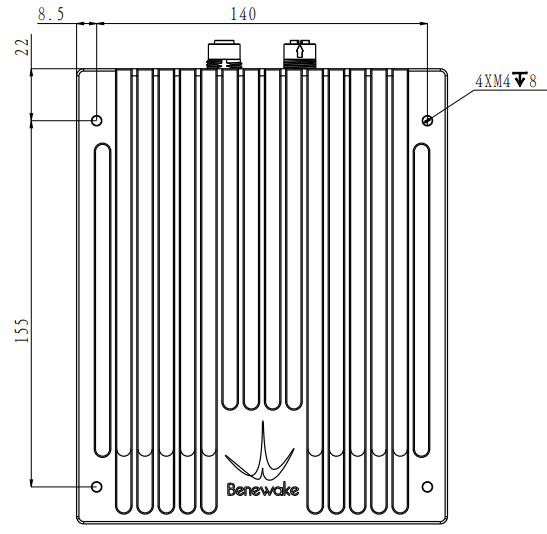

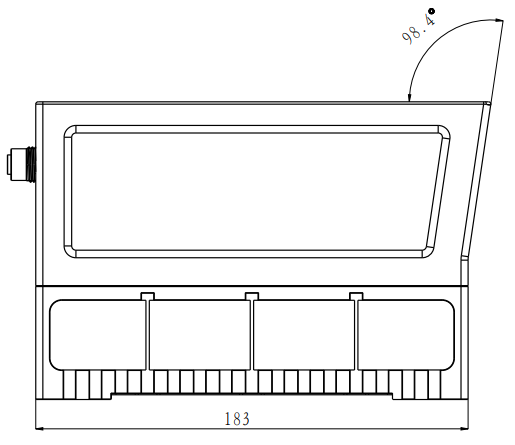

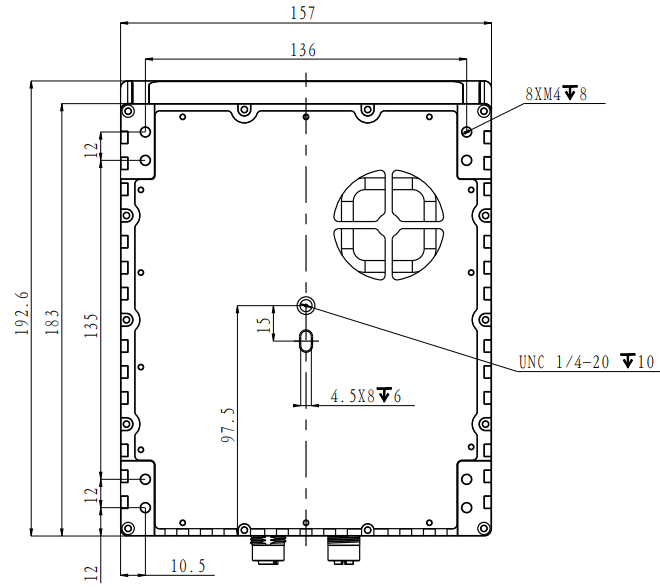

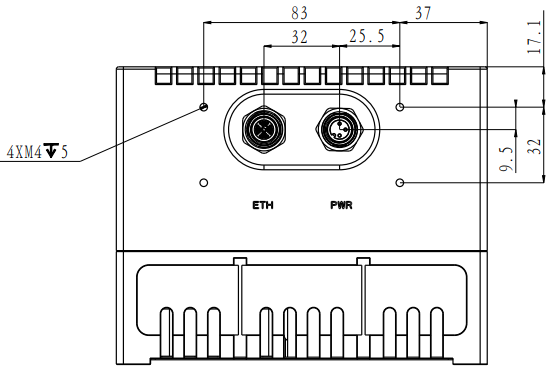

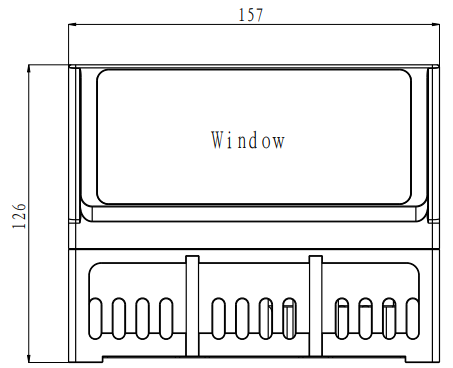

Exterior Dimensions （mm）
