TF02-Pro-W-485 Datasheet
TF02-Pro-W-485 LiDAR
TF02-Pro-W-485 LiDAR
PD-TF02-Pro-W-485-Datasheet-A01
TF02-Pro-W-485 LiDAR
TF02-Pro-W-485 is a single-point ranging LiDAR based on the upgraded TF02-Pro-W using ToF (Time of Flight) principle. It has been optimized in communication interface, input voltage and reverse voltage protection, adapted to the needs of industrial scenarios. Main product features Main application
scenarios
High range Self-cleaning function Level Detection 7-30V wide range input voltage RS-485 communication interface
SPECIFICATIONS
Parameters Typical Value
Indoor 0Klux Outdoor 100Klux
Operating Range 0.1m~25m @90% 0.1m~25m @90%
reflectivity 1 reflectivity 0.1m~12m@10% 0.1m~12m@10% reflectivity 2 reflectivity
| Parameter | Value |
|---|---|
| Product Accuracy | 3 ±6cm @（0.1m~6m）； ±1% @（6m~25m） |
| Performance Distance resolution | 1cm |
| Frame rate | 1Hz~1000Hz（adjustable, default100Hz） 4 |
| Repeatability | 1σ: ＜2cm（0.1m~25m@90% reflectivity） |
| Ambient light | 100Klux |
immunity
| Parameter | Value |
|---|---|
| Enclosure rating | IP5X |
| Optical Photobiological safety | Class 1 （IEC60825） |
| parameters Central wavelength | 850nm |
| Light source | VCSEL |
TF02-Pro-W-485 LiDAR
PD-TF02-Pro-W-485-Datasheet-A01
Parameters Typical Value
FoV 3° 5
| Parameter | Value |
|---|---|
| Supply voltage | DC 7V~30V |
| Electrical Average current | ≤200mA@12V |
| parameters Power consumption | ≤4.8W |
| Peak current | 400mA@12V |
| Dimension (L×H×W) | 85mm×59mm×43mm |
Housing PC/ABS Operating -20℃~60℃
Others temperature
Storage temperature -30℃~80℃ Weight 92g (with cables) Cable length 120cm
RS-485
Default baud rate 115200
Communicatio
Data bit 8
n interface Stop bit 1
Parity None

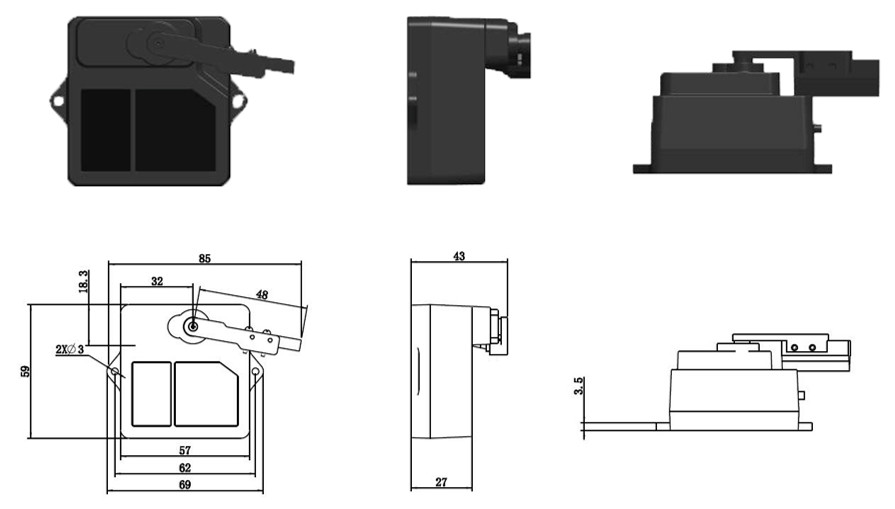

Dimensions
1. The detection range is determined with the standard white board (90% reflectivity) at 25℃.
2. The detection range is determined with the standard black board (10% reflectivity) at 25℃.
3. The accuracy is measured with the standard white board (90% reflectivity) at 25℃.
4. The highest frame rate is 1000Hz, the customized frame rate should be calculated by the formula:
TF02-Pro-W-485 LiDAR
PD-TF02-Pro-W-485-Datasheet-A01
2000/n (n is an integer with ≥ 2).
5. The angle is a theoretical value, the actual angle value has some deviation. Disclaimer ： As our products are constantly improving and updating, the specifications of TF02-Pro-W are subjected to change. Please refer to the official website for the latest version.
